The Ferrari 312T was a Ferrari Formula One car design, based on the 312B3 from 1974. In various versions, it was used from 1975 until 1980. It was designed by Mauro Forghieri for the 1975 season and was an uncomplicated and clean design that responded to mechanical upgrades.
The 312T series won 27 races, four Constructors' and three Drivers' Championships, making it the most successful car design in Formula One history. It was replaced for the 1981 season by the 126 C, Ferrari's first turbocharged F1 car. It was also Ferrari's last naturally-aspirated F1 car until the Ferrari 640 in 1989, after the ban on turbocharged engines.[1][2]
Mechanical configuration[]
The car was powered by the powerful and ultra reliable 180 degree Flat-12 engine which gave around 510 bhp. Although it had to carry more fuel, oil and water than the DFV-powered cars the power-to-weight ratio of the Flat-12 was about the same as the DFV and the same liquids the American-British engine needed to run. The "3" stood for the car's engine displacement (3 litres) and "12" was the number of cylinders it had (12). The T in the name stood for trasversale[3] or 'transverse' five speed gearbox ahead of the rear-axle line, improving the car's handling characteristics, which had been the downfall of its predecessor.
Versions[]
312T[]

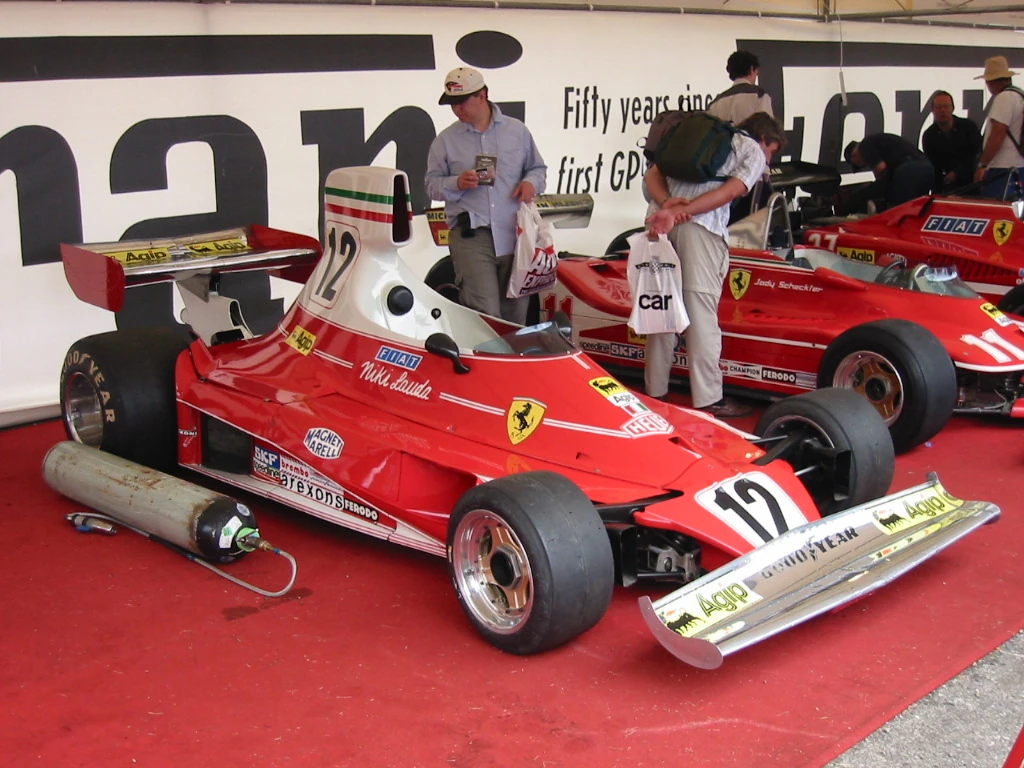

Niki Lauda's 1975 312T on display.
The development of the 312T began in 1974, as it became apparent that problems with the handling of the then current 312B3 chassis could not be solved, and a radical re-think was required.[4] As with all Ferrari F1 cars of this era, the design of the new model was led by Mauro Forghieri- the capable Italian engineer designed an all-new chassis and bodywork, and redesigned both the engine and the gearbox.
The car was constructed with aluminium panels over a tubular steel spaceframe, as was typical in F1 at the time,[5] but featured a large number of new design features, the most interesting of which was the transverse-mounted gearbox – the T in the car's name stood for Trasversale. The gearbox design allowed it to be positioned ahead of the rear axle, in order to give a low polar moment of inertia. The suspension was also significantly different from that of the 312B3, and the front of the chassis was much narrower. The handling of the car was found to be inherently neutral, not suffering from the persistent understeer which blighted the 312B3. Niki Lauda tested the car extensively during the off season, ready for a full-on championship challenge.
The first 312T was completed in the autumn of 1974, and unveiled to the press in Modena after the end of the 1974 season. However, the team used the old 312B3 at the first two races of the 1975 season, and it was not until the South African Grand Prixthe 312T received its race debut. The car's performance at its debut race was disappointing, with Clay Regazzoni's car being set up incorrectly, and Niki Lauda's suffering from a lack of power. A subsequent test of Lauda's engine proved that there was a technical problem.[4]
The 312T was tested alongside the 312B3 at Fiorano, proving conclusively that the newer car was faster, and indeed it went on to win its next race, the non-championship International Trophy race, with Lauda at the wheel. In the world championship, after the slow start to the season in which Brabham, Tyrrell and McLaren put up strong competition, Lauda won 4 out of 5 races mid season before snatching the title at Monza by finishing third, whilst Clay Regazzoni's win in that race secured Ferrari its first Constructors' Championship since 1964. Lauda went on to win the US Grand Prix at season's end, confirming Ferrari's superiority in 1975.
The Formula 1 technical regulations were changed for the 1976 season – from the Spanish Grand Prix in May, the tall air boxes which had become popular would be banned. The rules therefore allowed Ferrari to continue to use the 312T for the opening 3 races of the 1976 season (Lauda won the first two and Regazzoni the third), before the introduction of its successor, a revised version called the 312T2.
Five 312T chassis were used in races (chassis numbers: 018,021,022,023,024).[6] The car's final world championship race was at the 1976 United States Grand Prix West.
312T2[]
Clay Regazzoni (1939–2006) in a 312T2 in 1976 at the Nürburgring
The 312T2 was launched at Fiorano and featured a number of modifications over the 312T.[7] In order to comply with the revised aerodynamic rules, the car no longer featured an airbox behind the cockpit. Instead "NACA shaped" air intakes were incorporated into the cockpit sides, feeding air into each cylinder bank of the flat 12 engine. At 2560mm, the wheelbase was 42mm longer than that of the 312T.[8] At the time of launch, the car also featured some notable mechanical modifications, including a de Dion rear suspension arrangement, although this was abandoned after extensive testing, in favour of a more conventional suspension set up.[7]
The 312T2 was given its race debut at the non-championship Brands Hatch Race of Champions in March 1976 and was first used in a world championship race in May at the Spanish Grand Prix. The 312T2 was, if anything, more successful than the 312T. Lauda was comfortably leading the world championship after another 3 wins, when at the 1976 German Grand Prix at Nürburgring he had a massive accident caused by a suspected rear suspension failure. In the aftermath he nearly burned to death, but was miraculously back to racing just 6 weeks later. Lauda conceded the title by just a single point to James Hunt, but the 312T2's superiority helped Ferrari win its second consecutive constructors' title.
312T2B[]
The 312T2 was uprated to B-spec for the 1977 season. At the early races the cars were little different from the 1976 specification cars, indeed two of the 1976 cars (chassis 026 and 027) were used in the early races.[6] One of the few visible changes was the addition of Fiat logos to a Ferrari F1 car for the first time. Lauda was unhappy with the performance of the car at the first two races of 1977, and led an extensive test programme to develop the car in the weeks between the Brazilian and South African grands prix.[7] These tests resulted in the introduction of several changes to the car, including a new rear wing, revised bodywork and suspension. Lauda went on to win the South African race, albeit in tragic circumstances, his car heavily damaged by debris from Tom Pryce's fatal accident.
Over the course of the season, three new cars were constructed (chassis numbers 029, 030 & 031) and the car's development continued.[6] Several different noses and rear wing profiles were used, some especially tailored for specific circuits, and numerous changes were made to the suspension and rear bodywork. One of the problems Ferrari had with the 312T2B in 1977 was that the Goodyear tyres were increasingly unsuited to the car. As Goodyear continued to develop the tyres to cope with the high downforce of the Lotus 78, it became more difficult for the Ferrari (with less downforce) to build up sufficient tyre temperatures. Although still quick, the B-spec car proved to be more difficult to drive than the previous year's iteration of the car largely due to the insufficient tyre temperatures and the various wing profiles Forghieri and his team were using, some which didn't work properly. In one example, Lauda retired from the Swedish Grand Prix because of the car's handling difficulties.
However, despite its problems, the 312T2B was good enough to win the Drivers' Championship for Lauda, who won more through the car's reliability than outright speed. He took 3 wins, while Reutemann won once. The Constructors' Championship was also secured for a third successive season before Lauda walked out on the team before season's end after he won the championship at Watkins Glen in America. He was replaced by the fiery Canadian Gilles Villeneuve but Villeneuve could not get a handle on the T2B, as its neutral handling did not suit his oversteering driving style. Ferrari were due to run 3 cars at Mosport Park in Canada but Lauda decided to depart early because he felt Ferrari could not run 3 cars at a race without its resources being stretched. Then at the last race at the Mount Fuji circuit in Japan, Villeneuve had an enormous accident where he was launched over Ronnie Peterson's 6-wheel Tyrrell at the end of the straight, cleared the Armco barrier and landed in a spectator-restricted area. 2 spectators who were standing in this restricted area were crushed and killed instantly by the airborne Ferrari.
The 312T2B was used for the first two races of 1978, before being replaced by the 312T3.
312T3[]
Ferrari 312T3 driven by Carlos Reutemann (1942–2021) in 1978 USA Grand Prix at Watkins Glen, NY
The 312T3 was introduced for Villeneuve and Reutemann at the third race of the 1978 season.
The car featured the same flat 12 engine as had been used since 1970, albeit tuned to give around 515 bhp. The chassis was completely new, with a new monocoque structure and a different suspension arrangement, designed to work with the Michelin tyres. The bodywork visibly very different, with a flatter top to the body, allowing improved air flow to the rear wing.
All the hard work came to nothing though as the pioneering Lotus 79 ground effect "wing car" took on and beat all comers with ease that season, and Ferrari were left to pick up the pieces of any Lotus failures. Reutemann won 4 races, whilst Villeneuve won for the first time at the final race, his home race in Canada, but it was more a season of consolidation. Reutemann moved to Lotus for 1979, replaced by Jody Scheckter. Ferrari was 2nd in the Constructors' Championship.
312T4[]

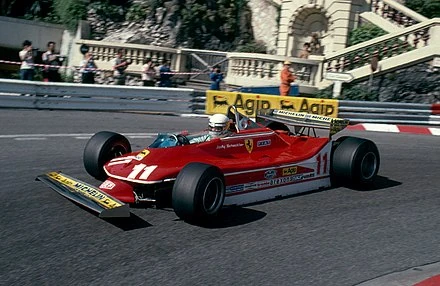

Jody Scheckter driving the 312T4 at the 1979 Monaco Grand Prix, where he took his second win of the season.
In 1979, a significant amount of progress was made in aerodynamics and to challenge Lotus, Forghieri realised he had to follow their lead and design a ground effect car for 1979. The 312T4, introduced at the 1979 South African Grand Prix was closely based on the 312T3. Its origins placed restrictions on the aerodynamic design since the T series had never been designed with ground effect in mind. The 312T4 monocoque was designed to be as narrow as possible, to take advantage of ground effects, but this was limited by the width of the flat 12 engine, which partially sat in the area where the upswept underside should have been, therefore the 312T4 was more of a wing car similar to the Lotus 78.
The car was extremely reliable, recording only one retirement for mechanical reasons and it won 6 races in 1979, three each for Villeneuve and Scheckter. Other solid placings helped Ferrari win its fourth Constructors' Championship in 5 seasons and Scheckter his only Drivers' Championship.
Scheckter was given the 312T4 car he drove to his championship after the new 312T5 was ready to be debuted in Argentina in 1980. He still owns it, and ran it at the 2010 Bahrain Grand Prix weekend to celebrate the 60th anniversary of Formula One along with every living Formula One world champion (except for Nelson Piquet and Kimi Räikkönen).[9]
312T5[]
Gilles Villeneuve's 312T5.
The 1980 season saw further aerodynamic progress by Cosworth DFV teams, and a heavily updated version of the 312T4, the 312T5 was introduced at the start of the season. The Ferrari was totally outclassed as their wide 312 "Boxer" engine did not suit the aerodynamic needs. The car was unreliable, slow, and ineffective against the competition. The other constructors' cars got better throughout the season whereas the 312T5's development went virtually nowhere – the car became less and less competitive over the season. For the first time since 1973, Ferrari did not win a race for an entire season, and the team finished 10th in the Constructors' Championship. Scheckter even failed to qualify in Canada and, after only managing 2 points, retired from the sport at the end of the year.
The 312T5 was succeeded by a completely new car, the 126CK, for the 1981 season.
312T6[]
The six-wheeled 312T6 used four tyres at the rear, specially developed for the purpose. It was one of a few six-wheeled designs during that period, although Tyrrell's P34 was the only example which raced. The car followed in the footsteps of the Tyrrell P34, but instead of four smaller front wheels, the T6 used 4 normal sized rear wheels on one rear axle.[10]
The car was tested by both Niki Lauda and Carlos Reutemann in 1977, but it never raced. Quite apart from the fact that it was far wider than the regulations permitted it also proved a challenge to drive. During one test session at Ferrari's Fiorano test track, Carlos Reutemann, on the 12th lap, crashed the car, which then burst into flames. On another occasion, it suffered a rear upright failure. Reutemann was not impressed with the 312T6.[11]
312T8[]
Following the 312T6 experiment articles appeared in the Italian press with pictures and illustrations depicting a secret eight-wheeled Ferrari Formula 1 car, dubbed the 312T8. They showed four wheels at the front, like the Tyrrell P34, and another four at the rear, like the March 2-4+0. The idea was evidently crazy and no such car ever materialised. Many years later, these pictures were revealed to be a mock up, released by Ferrari itself (although not officially) to keep attention high.[12][13]
Race Victories[]
Complete Formula One Results[]
| Complete Formula One Results | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Car | Tyre | Driver | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | Pts. | Pos. |
| 1975 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
| 312T | G |  Lauda |
5th | Ret | 1st | 1st | 1st | 2nd | 1st | 8th | 3rd | 6th | 3rd | 1st | 72.5[14] | 1st | |||||
 Regazoni |
16th | NC | Ret | 5th | 3rd | 3rd | Ret | 13th | Ret | 7th | 1st | Ret | |||||||||
| 1976 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
| 312T | G | Lauda |
1st | 1st | 2nd | 83 | 1st | ||||||||||||||
| Regazoni |
7th | Ret | 1stP | ||||||||||||||||||
| 312T2 | Lauda |
2nd | 1stP | 1stP | 3rd | Ret | 1stP | Ret | WD | WD | 4th | 8th | 3rd | Ret | |||||||
| Regazoni |
11th | 2nd | 14th | 6th | Ret | DSQ | 9th | WD | 2nd | 2nd | 6th | 7th | 5th | ||||||||
 Reutemann |
9th | ||||||||||||||||||||
| 1977 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
| 312T2B | G | Lauda |
Ret | 3rd | 1st | 2nd | DNS | 2nd | 2nd | Ret | 5th | 2nd | 1st | 2ndP | 1st | 2nd | 4th | WD | WD | 95 (97) |
1st |
| Reutemann |
3rd | 1st | 8th | Ret | 2nd | 3rd | Ret | 3rd | 6th | 15th | 4th | 4th | 6th | Ret | 6th | Ret | 2nd | ||||
 Villeneuve |
12th | Ret | |||||||||||||||||||
| 1978 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
| 312T2B | M | Reutemann |
7th | 1st | 58 | 2nd | |||||||||||||||
| Villeneuve |
8th | Ret | |||||||||||||||||||
| 312T3 | Reutemann |
Ret | 1st | 8thP | 3rd | Ret | 10th | 18th | 1st | Ret | DSQ | 7th | 3rd | 1st | 3rd | ||||||
| Villeneuve |
Ret | Ret | Ret | 4th | 10th | 9th | 12th | Ret | 8th | 3rd | 6th | 7th | Ret | 1st | |||||||
| 1979 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
| 312T3 | M |  Scheckter |
Ret | 6th | 113 | 1st | |||||||||||||||
| Villeneuve |
Ret | 5th | |||||||||||||||||||
| 312T4 | Scheckter |
2nd | 2nd | 4th | 1st | 1stP | 7th | 5th | 4th | 4th | 2nd | 1st | 4th | Ret | |||||||
| Villeneuve |
1st | 1stP | 7th | 7th | Ret | 2nd | 14th | 8th | 2nd | Ret | 2nd | 2nd | 1st | ||||||||
| 1980 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
| 312T5 | M | Scheckter
|
Ret | Ret | Ret | 5th | 8th | Ret | 12th | 10th | 13th | 13th | 9th | 8th | DNQ | 11th | 8 | 10th | |||
| Villeneuve
|
Ret | 16th | Ret | Ret | 6th | 5th | 8th | Ret | 6th | 8th | 7th | Ret | 5th | Ret | |||||||
Reference[]
- ↑ "Get to Know Ferrari's Most Spectacular Formula 1 Engines - autoevolution". https://www.autoevolution.com/news/get-to-know-ferrari-s-most-spectacular-formula-1-engines-166240.html.
- ↑ "Ferrari's Most Alluring F1 Engines - Scuderia.com". http://www.scuderia.com/2017/06/01/ferraris-f1-engines-pursuit-power/.
- ↑ Ferrari: Grand Prix Car page 229 Section V The 3 Litre V12's Chapter 3 Lauda's sustained success by Alan Henry Autocourse (1984) Hazelton Publishing ISBN 090-5138-61-9
- ↑ 4.0 4.1 Henry (1989), pp. 229–230
- ↑ Ferrari official website Template:Webarchive retrieved 21 May 2009
- ↑ 6.0 6.1 6.2 Henry (1989), pp. 349–350
- ↑ 7.0 7.1 7.2 Henry (1989), pp. 232–263
- ↑ Ferrari official website Template:Webarchive retrieved 21 May 2009
- ↑ "To America, Hamilton is the new Beckham". http://www.metrof1.com/mt-search.cgi?IncludeBlogs=4&search=Stewart.
- ↑ Keith Collantine (2007-03-01). "Banned! Six-wheelers |". F1fanatic.co.uk. http://www.f1fanatic.co.uk/2007/03/01/banned-six-wheelers/. Retrieved 2011-01-22.
- ↑ Mattijs Diepraam, 'Uechtel', Rafael Reyna, Leo Breevoort, Jasper Heymans (2013-01-09). "Grand Prix cars that never raced (work in progress)". 8w.forix. http://www.forix.com/8w/6thgear/neverraced.html. Retrieved 2014-07-06.
- ↑ "Proyectos de F1 que no se concretaron – Cuando sólo cuatro… no bastan" (in es). effjuan.wordpress.com. http://clubf1.es/viewtopic.php?p=261273. Retrieved 2011-07-24.
- ↑ "Six Wheels On My Wagon". effjuan.wordpress.com. http://effjuan.wordpress.com/2011/07/. Retrieved 2011-07-24.
- ↑ 12 points are scored by Ferrari 312B3-74
